Overview

We are constantly working on the appearance of the reports we generate for our colleagues and collaborators. This includes managing .html and .docx output for different use cases, all while navigating the move from R Markdown to Quarto. At this stage, we have all but completely abandoned the idea of rendering directly to .pdf as we find .docx more friendly (tracking changes with collaborators, certain output manipulating functions) and it is readily ‘pdf-able’ - but more on all that in a future post.

Our primary report output format is .html and we have been looking for ways to harness certain Quarto features to improve both the aesthetic of our reports as well as our use of real estate. Often, we are presenting output for a range of models separated by narration. It is important that all models are presented with sufficient context (as opposed to output just dumped on a page) and we’ve settled on what we think is a nice way to ensure relevant information (like model diagnostics) are readily available (and digestible) to the reader, as opposed to being tucked away at the end — or worse — left out altogether.

Below, we present the way we currently present output from a linear regression in our .html reports.


Example Usage

To demonstrate, we will use a slightly modified dataset of Birth Weight data (read more with ?MASS::birthwt) from the MASS package (MASS::birthwt).

Data

dat_bwt <- MASS::birthwt

The dataset has 189 observations (rows) and in the code below we just tidy up some variables prior to running the model.

dat_bwt <- MASS::birthwt
dat_bwt <- dat_bwt %>%
  tibble() %>%
  mutate(smoke = factor(case_when(smoke == 1 ~ "Yes",
                                  smoke == 0 ~ "No",
                                  T ~ NA_character_)),
         ht = factor(case_when(ht == 1 ~ "Yes",
                               ht == 0 ~ "No",
                               T ~ NA_character_)))

Building the model

We want to implement the following linear regression (lm) model:

  • Outcome: infant birth weight (bwt).
  • Exposure of interest: maternal smoking status during pregnancy (smoke).
  • Covariates: maternal age (age) and history of hypertension (ht).

This model can be generated using the thekids_model function using the code below:

mod_bwt <- dat_bwt %>%
  thekids_model(y = "bwt", x = "smoke", formula = "age + ht")
#> Warning: `fortify(<lm>)` was deprecated in ggplot2 3.6.0.
#> ℹ Please use `broom::augment(<lm>)` instead.
#> ℹ The deprecated feature was likely used in the ggfortify package.
#>   Please report the issue at <https://github.com/sinhrks/ggfortify/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
#> ℹ Please use tidy evaluation idioms with `aes()`.
#> ℹ See also `vignette("ggplot2-in-packages")` for more information.
#> ℹ The deprecated feature was likely used in the ggfortify package.
#>   Please report the issue at <https://github.com/sinhrks/ggfortify/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> ℹ The deprecated feature was likely used in the ggfortify package.
#>   Please report the issue at <https://github.com/sinhrks/ggfortify/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

In this, we have passed (piped: %>%) the data into the first argument, specified the outcome variable as y, the exposure of interest as x, and finally the remainder of the models formula (that is, the covariates we want to look at in our model).

Alternatively, we could run our model in the ‘normal’ way by passing it into our output processing function thekids_model_output — the workhorse of the function above — which would look like the following:

my_model <- lm(bwt ~ smoke + age + ht, data = dat_bwt)
thekids_model_output(my_model, by = "smoke") # still requires specifying the exposure of interest

The objects defined above (mod_bwt, my_model) are lists that contain outputs relating to our selected model type.

Below, we will see how the output would appear in an .html report.

Model output

Descriptive statistics

The table below shows summary statistics for all variables in the model by the primary exposure variable (maternal smoking status in pregnancy).

mod_bwt$mod_desc %>%
  thekids_table(colour = "DarkTeal",
                padding.left = 10, padding.right = 10)

smoke

No
N = 1151

Yes
N = 741

p-value2

bwt

3,056 (753) [115]

2,772 (660) [74]

0.007

age

23 (5) [115]

23 (5) [74]

0.5

ht

7 (6.1%)

5 (6.8%)

>0.9

1Mean (SD) [N Non-missing]; n (%)

2Wilcoxon rank sum test; Fisher's exact test

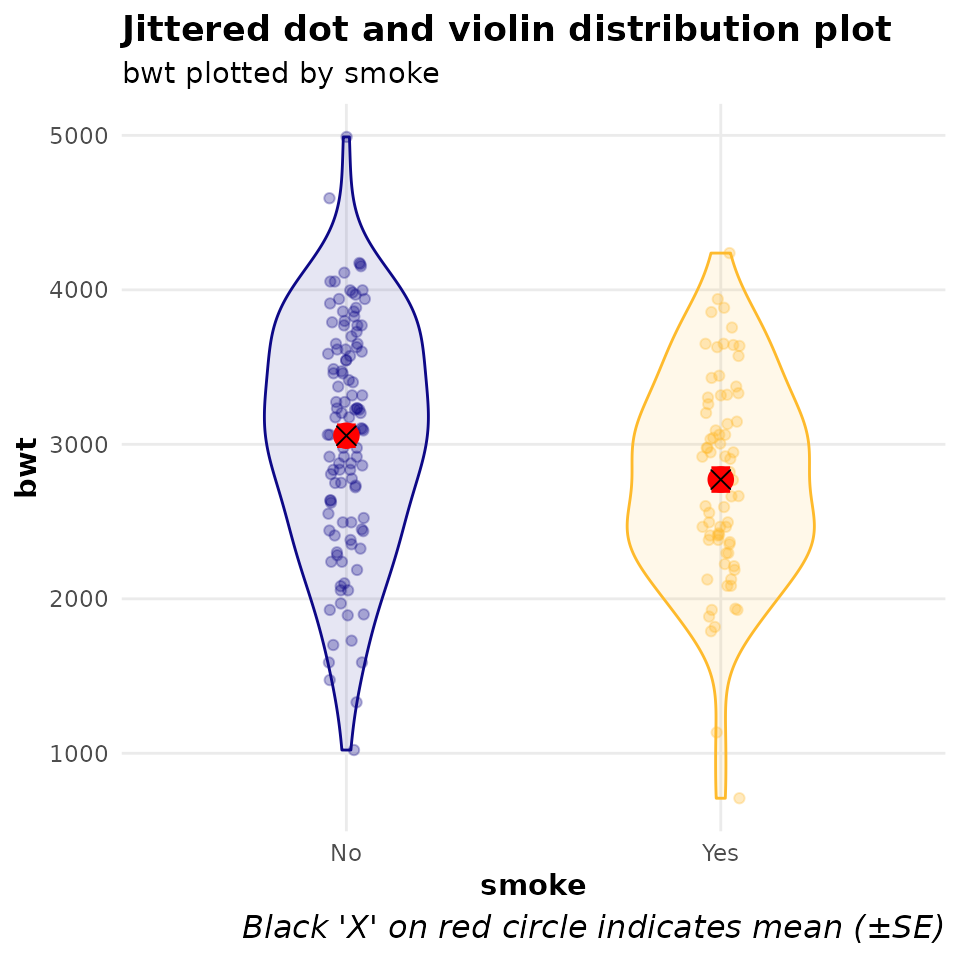

The figure below shows the distribution of the primary outcome variable (infant birth weight) by the primary exposure variable (maternal smoking status in pregnancy).

mod_bwt$mod_desc_plot


Model diagnostics

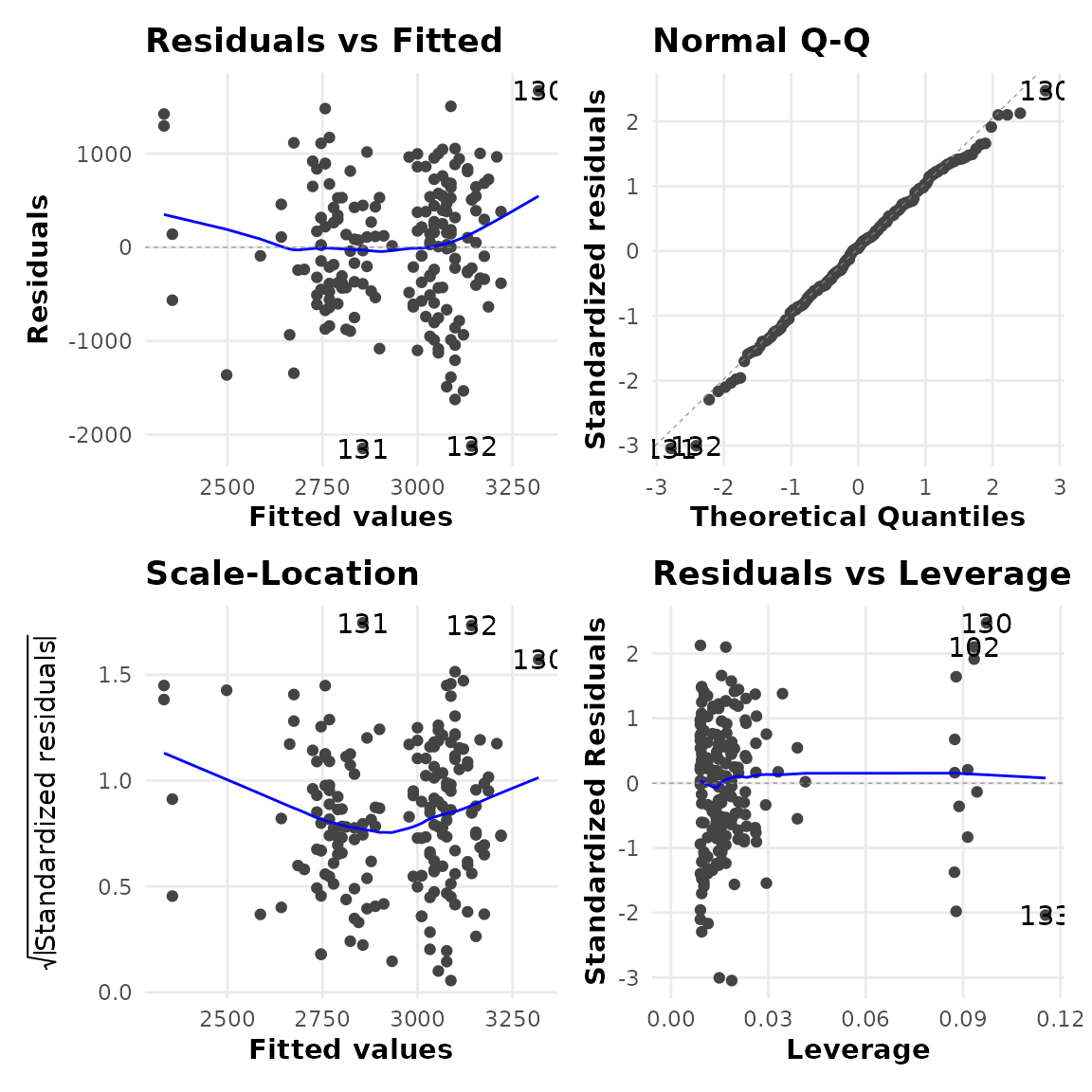

The four panel plot below shows diagnostic plots that can aid in determining if the required assumptions of model are met. Based on the diagnostics below, the model fit is deemed to be good.

mod_bwt$mod_diag


Broadly, what we are looking for in these plots (and why) are:

Linear relationship check
  relatively even bands of points around a flat line at 0 as we move from left to right.

Normal distribution of errors check
  the points to fall close to the diagonal line.

Influential observations check
  the points funnel close to 0 as we move from left to right with no extreme values in the top right or bottom right corners.

Homoscedasticity check
  checking residuals are relatively evenly spread across the range of predictions.


Model output

The table below shows the model output for the linear regression model, including the beta coefficient (and 95% confidence interval) and p-values associated with each variable in the model.

mod_bwt$mod_output %>%
  thekids_table(colour = "DarkTeal",
                padding.left = 10, padding.right = 10)

Characteristic

Beta

p-value

(Intercept)

2,824.1 (2,351.4, 3,296.7)

0.000

smoke

No

—

Yes

-275.7 (-485.1, -66.2)

0.010

age

11.0 (-8.4, 30.3)

0.264

ht

No

—

Yes

-424.2 (-843.0, -5.4)

0.047

Abbreviation: CI = Confidence Interval

Model effect

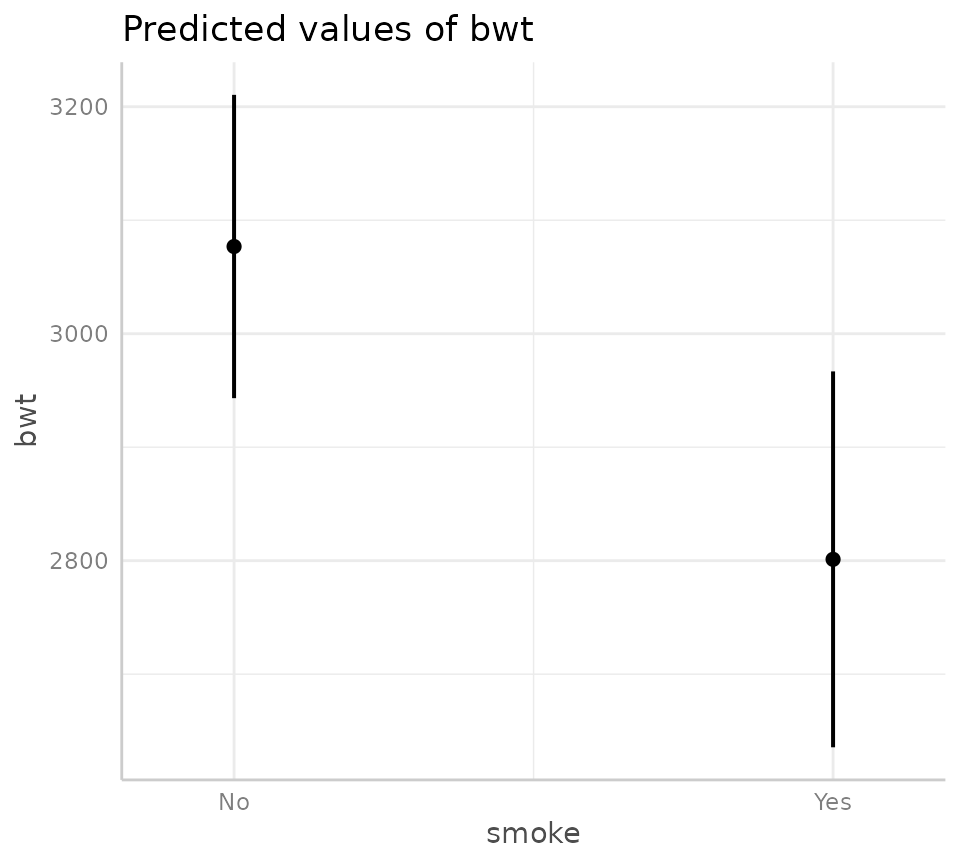

The figure and table below show the predicted values (also known as the estimated marginal mean) for the outcome variable (infant birth weight) for each level of the exposure of interest (i.e., no maternal smoking in pregnancy or maternal smoking in pregnancy), along with a 95% confidence interval. Note, see table footnote for the values used for the other variables in the model.

mod_bwt$model %>%
  ggeffects::predict_response("smoke") %>%
  plot

mod_bwt$model %>%
  ggeffects::predict_response("smoke") %>%
  ggeffects::print_html()
Predicted values of bwt
smoke Predicted 95% CI
Adjusted for: age = 23.00, ht = No
No 3076.84 2943.20, 3210.47
Yes 2801.18 2635.57, 2966.79

Interpretation of model

For the example given above:

  • There is evidence to suggest that smoking during pregnancy is associated with reduced birth weight.
  • Maternal smoking during pregnancy is associated with a -275.66g lower birth weight (95% CI: -485.1,-66.2).
